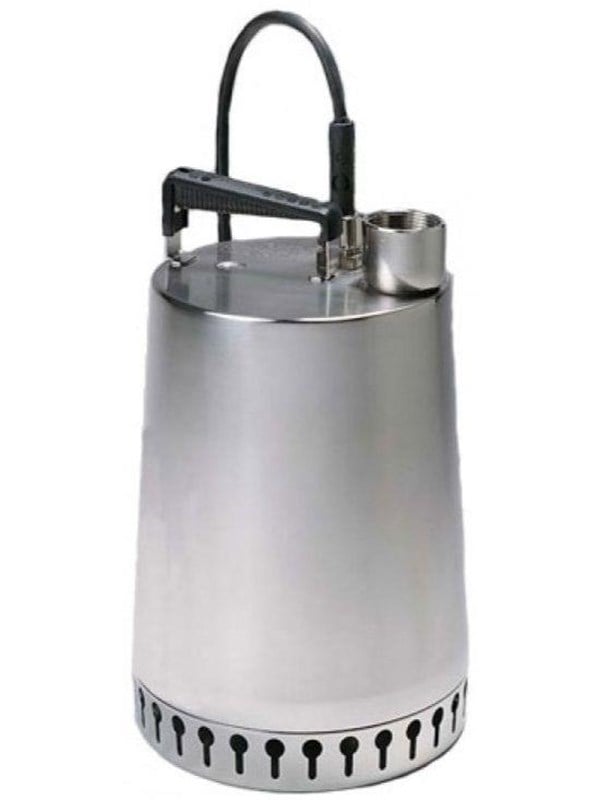

Grundfos unilift ap 12.40.06.1 1x230v 10m sch

Unilift AP12.40.06.1Submersible drainage pump typeVertical single-stage stainless steel submersiblepump with vertical discharge port and integratedsubmersible 1-phase totally enclosed motorin insulation class F with thermal overloadprotection. The pump is fitted with a suctionstrainer.The impeller is a SEMI OPEN impeller for12 mm free passage suitable for pumpinggroundwater, surface water, rain water andsimilar.The pump has a double shaft seal and an intermediate oil chamber pre-filled with non-toxic special oil.The pump has a riser pipe, a cooling jacket for continuous cooling of the motor by the pumped liquid and long-life deep-groove greased-for-life ball bearings.The pump is ready for use as it is fitted withcarrying handle and is supplied with a10 m mains cable. The mains cable is of theplug type with glass sealing compound in thesocket to prevent penetration of humidity intothe stator windings.Liquid:Liquid temperature range:0 .. 55 °CTechnical:Type of impeller:SEMI OPENMaximum particle size:12 mmMaterials:Pump housing:Stainless steelPump housing:DIN W.-Nr. 1.4301Pump housing:AISI 304Impeller:Stainless steelImpeller:DIN W.-Nr. 1.4301Impeller:AISI 304Installation:Pump outlet:Rp 1 1/2Maximum installation depth:10 mElectrical data:Type of motor:PSCPower input - P1:0.9 kWRated voltage:1 x 230 VRated current:4.4 ACos phi - power factor:0,99Rated speed:2785 rpmCapacitor size - run:16 F/400 VEnclosure class (IEC 34-5):IP68Insulation class (IEC 85):FLength of cable:10 mType of cable plug: SchukoOthers:Net weight:12 kgGross weight:12.5 kg
