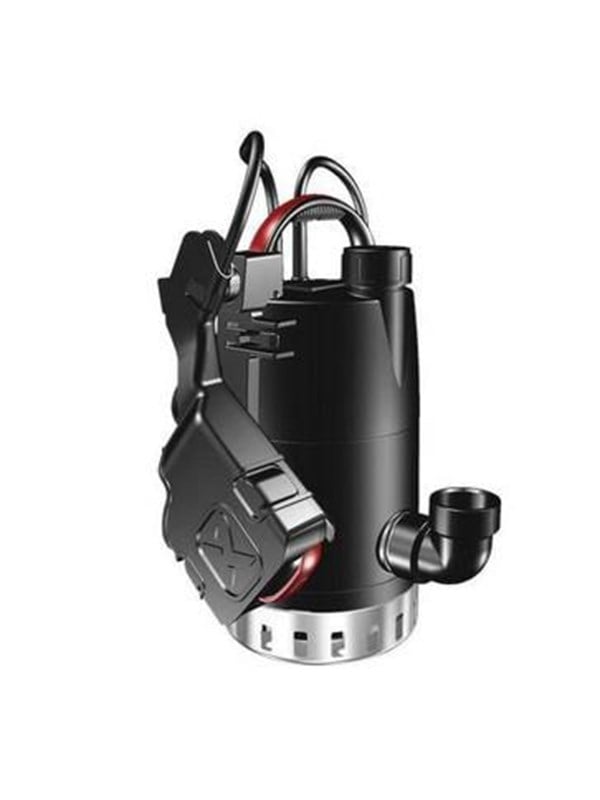

Grundfos unilift pump cc7-a1

Grundfos Unilift CC pumps are single-stage submersible pumps with a low suction ability down to 3 mm water level. The pumps are designed for pumping rainwater and grey wastewater, e.g. from -washing machines, baths, sinks, etc. from low-lying parts of buildings up to sewer level-cellars or buildings prone to flooding-draining wells-wells for surface water with inlets from roof gutters, pits, tunnels, etc.-swimming pools, ponds or fountains.The pumps are suitable for both stationary and portable use. They are for automatic operation. The pumps allow free passage of particles up to ø10 mm. The motor incorporates automatic overload protection cutting out the motor in case of overload. When cooled to normal temperature, the motor restarts automatically. Technical: Maximum particle size: 10 mm Materials: Pump housing: PP 15 GF Impeller: PPOm 20 GF Installation: Pump outlet: 1.1/4 Maximum installation depth: 10 m Liquid: Pumped liquid: Any Newtonian liquid Liquid temperature range: 0 .. 40 °C Density: 998.2 kg/m3 Electrical data: Mains frequency: 50 Hz Rated voltage: 1 x 220-240 V Rated current: 1.8 A Capacitor size - run: 8 F/450 V Enclosure class (IEC 34-5): IP68 Insulation class (IEC 85): F Length of cable: 10 m Type of cable plug: SCHUKO
